Description

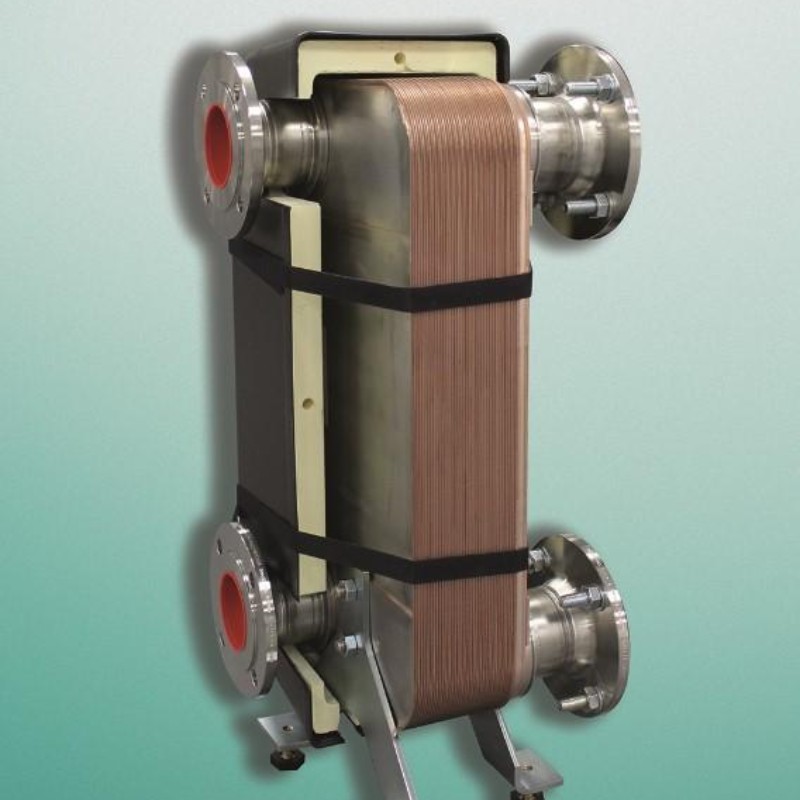

240kW insulated plate heat exchanger set for application with heat pump cascade and commercial setups. This can be used in cascaded Vaillant air source heat pumps (or boilers) or hybrid systems involving a boiler and a heat pump.
Technical Specifications
PHE C 240-40: Plate heat exchanger 240kW SetProduct Code: 0010031891
This Contains:
1No. Heat exchanger, 240kW – PHE C 240-40 0020137070
1No. Pipe, cpl. connection cut DN 65 0020107886
1No. Insulation, f.P2P-hex 0020137070
1No. Insulation, f. connection pipes P2P hex 0020248930
Dimensions* (refer to diagram)
Unit ABCDEFG
mm421532636161271321200
HIJKLMN
mm2086135175105400677
*note dimensions do not include insulation – see Technical Brochure attached
This Contains:
1No. Heat exchanger, 240kW – PHE C 240-40
0020137070
1No. Pipe, cpl. connection cut DN 65
0020107886
1No. Insulation, f.P2P-hex
0020137070
1No. Insulation, f. connection pipes P2P hex
0020248930
Dimensions* (refer to diagram)
